PALLET RACK REPAIR

By far, the most common rack damage is found on the front column of the pallet rack frame due to forklift impact. Additional damage to the reinforcing horizontal and diagonal struts is also likely whenever column damage occurs. Worldwide Material Handling provides rack repair solutions for all types of pallet rack damage and offers nationwide installation services. All of our rack repair solutions are designed and manufactured to the highest quality and engineering standards in the industry. Keep your warehouse safe with a pallet rack repair system from Worldwide Material Handling.

DOWNLOAD SELL SHEET VIEW VIDEO

Looking for solutions?
Give our sales team a call.
+1 888.650.WIRE (9473)

Contact Our Warehouse Pallet Rack Sales Team

Safeguard your warehouse

Learn more about pallet rack protection.

LEARN MORE

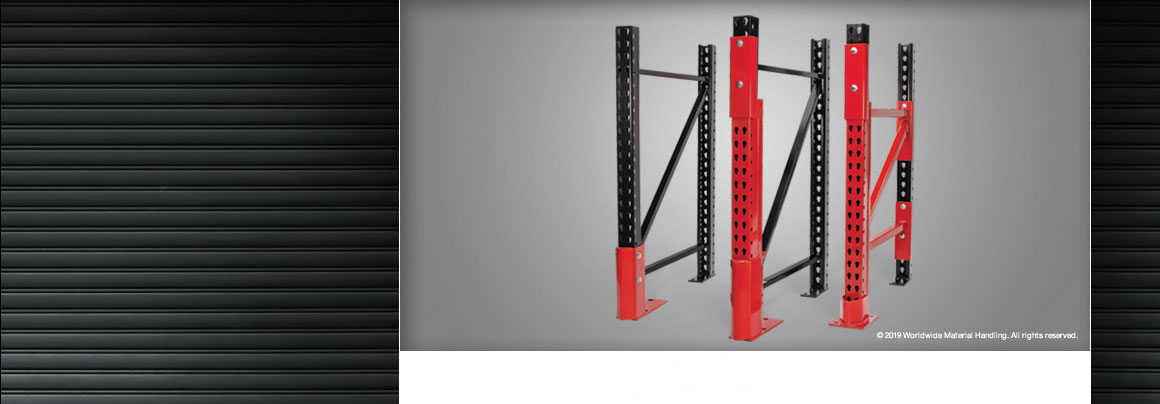

PALLET RACK COLUMN REPAIR

Pallet Rack Repair Kits

S

  • 10 ga. steel construction
  • In-stock sizes range from 24" to 84" in 12" increments
  • All bolted installation with Grade 5 hardware eliminates the need for welding
  • 1/4"-thick steel connection channels ensure rigid installation
  • 4" x 12" x 5/16"-thick footplate
  • Installs with two 3/4" dia. anchors to eliminate column twisting
  • Over 12 OEM punch patterns available
  • High-quality powder coat finish
  • Available in custom heights and colors
  • Custom/seismic footplates available
Rack Repair Solutions

SPro

Includes S features, plus:

  • 1/4"-thick x 12" high V-nose deflector provides increased defense against forklift damage
  • Optional heavy-gauge, flush-welded deflector available for improved aisle clearance

WorldRev_XS

XS

  • Designed as a 6" repair kit with a 12" deflector to prevent future damage
  • All bolted installation
  • 1/4"-thick steel construction
  • 4" x 12" footplate
  • Installs with two 3/4" x 4" anchors
  • High-quality powder coat finish
pallet-rack-column-repair-kits

Structural

  • Structural, 1/4"-thick closed-tube design
  • Our strongest single column repair kit
  • Available in 3" or 4" column widths
  • 4" x 12" x 5/16"-thick footplate
  • Custom/seismic footplates available
  • Optional 1/4"-thick x 4" high V-nose deflector provides increased defense against forklift damage
  • High-quality powder coat finish
  • Custom heights and colors available


PALLET RACK FRAME REPAIR

pallet-rack-frame-repair-kits

Single Leg Rack Repair

  • Fully engineered modular frame repair kit includes factory-welded bracing panel
  • Available in structural C-channel, tube or roll-formed column designs
  • Fully customizable for specific applications
  • Shown with optional 1/4”-thick x 4” high V-nose deflector
pallet-rack-frame-repair-kits

Double Leg Rack Repair

  • For pallet rack repairs where both front and rear columns are damaged
  • Factory welded and engineered frame repair for bolted installation
  • Available in structural C-channel, tube or roll-formed column designs
  • Standard 4" x 12" x 5/16"-thick footplate
  • Custom/seismic footplates available
  • Optional deflectors available

Watch Rack Repair Video
